AI Dental Diagnostics: How It Works and Why It Matters

You're sitting in a dental chair, looking at a radiograph on a large monitor. A small colored outline appears near the edge of a tooth. It doesn't look dramatic, and you may wonder whether you're seeing a cavity, an early change worth watching, or a computer's best guess.

That moment captures both the promise and the confusion around AI dental diagnostics. Artificial intelligence can review dental images, highlight patterns that deserve attention, and make findings easier to discuss. It doesn't examine your mouth, ask about sensitivity, assess your medical history, or decide whether treatment fits your goals. Those responsibilities remain with the dentist.

The most useful way to understand dental AI is as a second reader inside a digital, biologic workflow. It can add consistency to radiograph review while supporting conservative, mercury-free care. The important question isn't only how accurate the software appears in a study. It's what the highlighted finding means for you, how your dentist verifies it, and who makes the final decision.

Table of Contents

• What AI Dental Diagnostics Looks Like at the Dentist
  • What the patient actually sees
  • Why a digital studio may add this layer
• How AI Reads Dental Images and Predicts Problems
  • Step one, capture the image
  • Step two, scan for learned patterns
  • Step three, separate detection from prediction
  • Sensitivity and specificity in ordinary language
• What the Evidence Says About Accuracy
  • Why one percentage can mislead
• How AI Fits Into a Digital Dental Workflow
  • The image enters the system
  • The dentist reviews the output
  • The patient sees the reasoning
• Will AI Work for Your Mouth Specifically
  • Why your history can change the result
  • External validation matters
• Practical Questions to Ask Before Saying Yes
  • Start with the purpose
  • Ask how the result is checked
  • Ask about evidence and data
• Privacy, Ethics, and Who Owns Your Diagnosis

What AI Dental Diagnostics Looks Like at the Dentist

You've had your bitewing radiographs taken, and the images appear on a chairside screen. While your dentist studies the teeth, the software places a subtle outline around an area between two molars. Another marking may trace the level of supporting bone or identify a region that deserves closer inspection.

The screen isn't delivering a verdict. It's more like a careful assistant pointing to a paragraph in a long document and saying, “Please look here.” Your dentist still compares the highlighted region with the original image, examines your teeth and gums, considers symptoms and history, and decides whether the finding is clinically meaningful.

What the patient actually sees

A dental AI system may use colors, outlines, measurements, or labels to draw attention to possible caries, bone changes, periapical findings, or other patterns. The visual overlay can make a radiograph easier to understand, especially when you're trying to follow a conversation about an area that isn't visible in a mirror.

That clarity matters. A patient may hear “there's a suspicious area” and feel uncertain, while an annotated image gives the discussion a concrete starting point. It can also support monitoring when a dentist wants to compare images over time rather than rush from a computer alert to a procedure.

Why a digital studio may add this layer

In a paperless practice, digital radiography, intraoral scanning, photography, and electronic records can work together as one clinical record. AI can add a structured review of selected images without replacing the examination or turning care into an automated process.

For a biologic and mercury-free workflow, the technology can support visibility and documentation, while treatment decisions remain focused on preserving healthy tooth structure, understanding risk, and choosing biocompatible options where appropriate. The software may identify a pattern, but it can't determine whether a restoration is necessary, whether a lesion is active, or which material best fits your situation.

That leads to the question at the center of responsible AI dental diagnostics: is an AI highlight the same thing as a diagnosis? No. It's a prompt for professional interpretation.

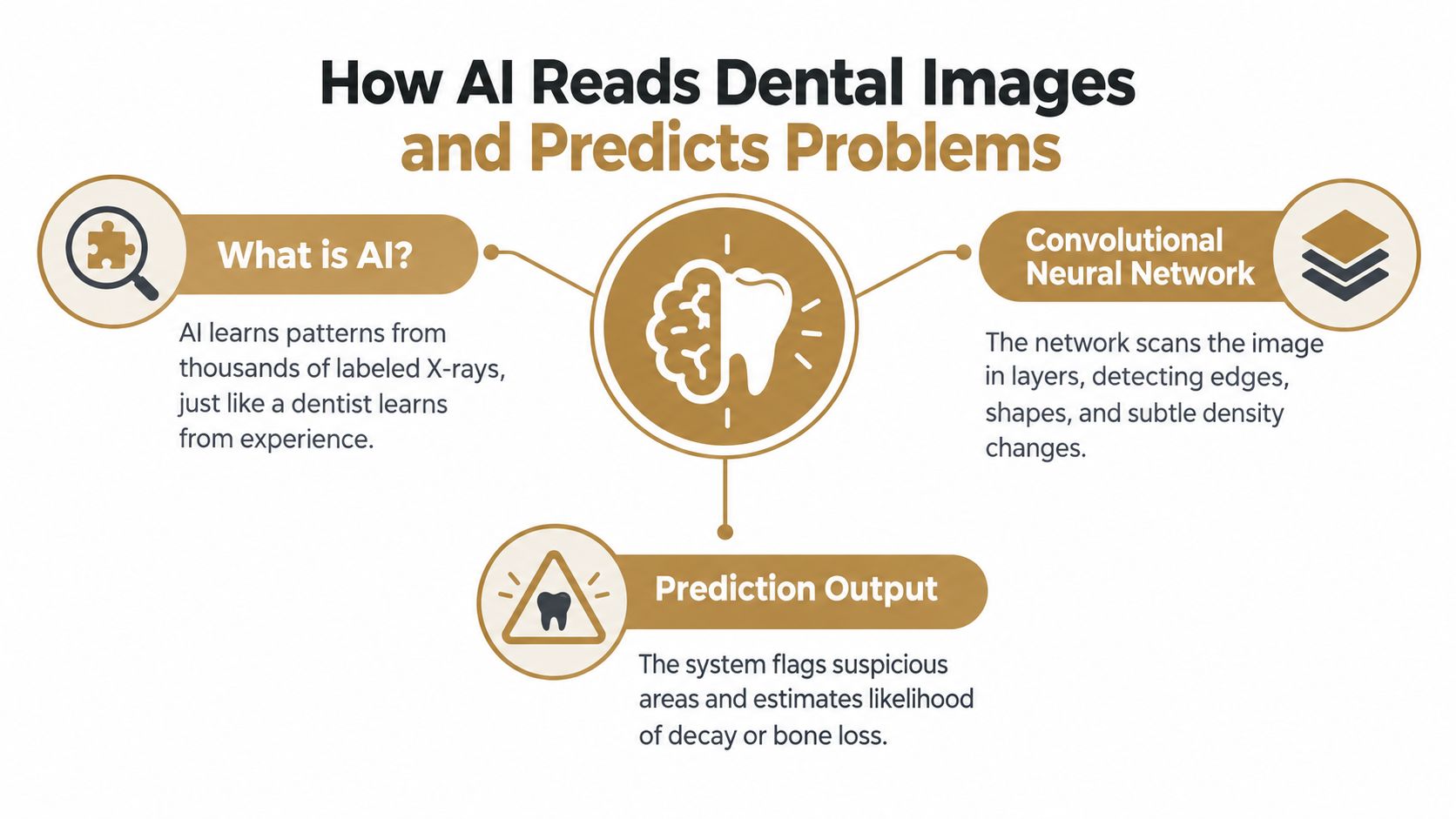

How AI Reads Dental Images and Predicts Problems

Think of AI image analysis as pattern recognition, not digital intuition. A person learns to recognize familiar features after seeing many examples. An image-based AI model does something similar mathematically, using labeled examples to identify recurring combinations of edges, shapes, textures, and density changes.

Step one, capture the image

The process begins with an input, such as a bitewing, periapical, panoramic, or intraoral photograph. The quality of that input matters. Positioning, contrast, movement, restorations, overlapping structures, and exposure can all affect what the software can interpret.

The system doesn't see a tooth in the same human way you do. It processes visual information as patterns of pixels and relationships. A radiolucent area, altered bone contour, or unusual density may resemble patterns present in its training examples.

Step two, scan for learned patterns

Many dental image systems use convolutional neural networks, a type of model designed for visual analysis. The network examines an image in layers. Early layers may respond to simple edges or lines, while later layers combine those signals into more complex shapes and regions.

That doesn't mean the model understands your tooth, your discomfort, or your priorities. It means the model calculates how closely parts of the image resemble patterns associated with a particular finding.

Step three, separate detection from prediction

Detection asks, “Does this image contain a pattern that may resemble decay, bone loss, or another finding?” Prediction goes further. A predictive tool may estimate risk based on clinical history, previous images, periodontal findings, or other information, depending on the system.

Those are different tasks. A highlighted radiographic signal doesn't automatically establish that disease is active, that it will progress, or that treatment is needed today.

Sensitivity and specificity in ordinary language

Two terms help describe how a system behaves:

• Sensitivity describes how often the system identifies cases where the condition is present. Higher sensitivity can reduce missed findings, but it may also generate more alerts that require human review.
• Specificity describes how often the system leaves disease-free cases unflagged. Higher specificity can reduce false alarms, but a system may still miss subtle or unusual findings.

Practical rule: A flagged area deserves attention, not automatic treatment. A clear image also doesn't prove that nothing is wrong.

The distinction matters because dental diagnosis combines image interpretation with examination, symptoms, history, risk assessment, and professional judgment. AI can help organize the visual evidence, but it can't independently decide what the evidence means for one person.

What the Evidence Says About Accuracy

Accuracy claims become useful only when you ask what was measured, on which images, and for which clinical task. A system that detects a broad radiographic change may perform differently from one asked to grade severity or distinguish a subtle early lesion from normal anatomy.

A 2024 systematic review and meta-analysis of AI-assisted caries diagnosis on bitewing radiographs reported pooled sensitivity of 87% and pooled specificity of 89%, with a diagnostic odds ratio of 55.8, alongside a reported 95% confidence interval of 28.8 to 108.3 in the review's results (the systematic review and meta-analysis of AI-assisted caries diagnosis). Sensitivity refers to identifying true disease cases, while specificity refers to correctly classifying disease-free cases.

Performance also changed with lesion depth. The review reported AI sensitivity of 84% for dentin caries and 71% for enamel caries, showing why early, subtle changes can be harder to identify than more advanced disease. The review found that AI models could provide greater diagnostic accuracy for overall caries detection than intraoral radiography assessed without algorithmic assistance, but that finding still supports an adjunctive role rather than autonomous diagnosis.

Why one percentage can mislead

A 2025 overview of systematic reviews and meta-analyses reported pooled AI sensitivity of 85%, specificity of 93%, and an area under the receiver-operating-characteristic curve of approximately 0.95 across dental diagnostic applications (the overview of dental AI systematic reviews and meta-analyses). The same evidence base reported pooled convolutional-neural-network accuracy of 93.1%, with a 95% confidence interval of 91.19% to 95.05%.

Those figures cover different applications, including caries detection, cephalometric landmark identification, and oral-lesion assessment. They don't mean that every tool performs the same way on every image, or that a patient's treatment decision carries the same certainty as a benchmark result.

A separate clinical validation study used 2,700 periapical radiographs containing 10,211 annotated teeth, followed by a prospective reader study involving 54 patients. In that study, the ConvNeXt-Tiny model achieved an AUC of 0.8828, accuracy of 76.49%, and recall of 88.24% for caries detection. For periodontitis staging, overall accuracy and weighted F1-score were both 61.3%, with macro-ROC-AUC of 75.4% (the clinical validation study of AI-assisted dental image interpretation).

The practical lesson is straightforward: AI may be stronger at some detection tasks than at staging or treatment classification. Your dentist must interpret the result in the context of probing, bone levels, symptoms, risk factors, and prior images.

How AI Fits Into a Digital Dental Workflow

AI works best when it joins an existing clinical process instead of becoming a separate event. A digitally integrated appointment may begin with an intraoral scan or digital radiograph, continue through software-assisted review, and end with a conversation in which the dentist explains what matters and what doesn't.

The image enters the system

Digital radiography captures the image without film processing, while an intraoral scanner can create a digital record of tooth surfaces and bite relationships. These tools don't answer the diagnostic question by themselves. They give the dentist clearer records to examine, compare, and explain.

The AI layer may process an eligible image and return highlighted regions or measurements. Depending on the software, that output may appear within the imaging platform or patient record.

The dentist reviews the output

This is the clinical checkpoint. The dentist looks at the original image, the annotation, the tooth itself, the surrounding tissues, and the wider history. If periodontal health is in question, the review may also include probing depths, bleeding findings, attachment loss, bone levels, risk factors, and earlier radiographs.

A dentist may accept the alert, dismiss it, or decide that it warrants monitoring rather than immediate intervention. The system's role is to support attention and consistency. It doesn't replace the examination.

The patient sees the reasoning

One benefit of digital tools is that the dentist can show you the same image used for clinical review. A conversation can then move from “you have a problem” to “this is the region we're evaluating, this is what the image suggests, and this is how the clinical findings affect the next step.”

That distinction supports informed consent. You're not being asked to approve a treatment solely because software colored part of a tooth. You're being shown evidence, given an interpretation, and invited to discuss options.

A digital workflow should make the dentist's reasoning more visible, not make the patient feel managed by a machine.

Will AI Work for Your Mouth Specifically

A system can perform well in a study and still behave differently on a particular patient's images. That's the generalization problem. Models learn from the examples provided during development, so their performance may change when images come from different scanners, clinics, populations, or clinical conditions.

A 2025 review reported that most AI dental studies were retrospective, many used single-center datasets, and geographically concentrated data left uncertainty about performance across diverse populations (the review of AI validation and generalization in dental medicine). The same review described variable performance in intraoral photographic analysis, with reported results ranging from 0.46 to 1.00, partly because imaging conditions and reference standards differed.

Why your history can change the result

A model may face a harder task when an image includes extensive restorations, implants, missing teeth, severe wear, unusual anatomy, or image artifacts. Age, previous treatment, and the condition of the supporting tissues can also change the visual patterns the software encounters.

A radiograph taken under controlled conditions isn't equivalent to a casual intraoral photograph. Detecting a broad abnormality isn't the same as grading its severity, deciding whether it's active, or determining whether restorative treatment is appropriate.

External validation matters

A tool trained and tested on images from one setting may appear strong because the test images resemble the training images. External testing asks whether performance holds when the images come from different sources. The review described above noted that external testing could substantially reduce performance and raised overfitting concerns, including studies using datasets of 1,000 or fewer cases.

That doesn't make AI useless. It means “AI works” is incomplete. The more useful question is, “How was this tool tested on images and patients unlike the original development group?”

Ask the practice:

• Which task does the software perform? Detection, staging, measurement, and risk prediction aren't interchangeable.
• What evidence supports this specific tool? Look for clinical validation rather than a feature list.
• Was it tested externally? Independent settings provide more useful information about generalization.
• How does the dentist handle uncertainty? A responsible workflow includes review, confirmation, and appropriate follow-up.
• What happens when the image quality is poor? The system should have a process for recognizing when its output may be unreliable.

Practical Questions to Ask Before Saying Yes

You don't need to challenge your dentist to ask informed questions. AI-assisted care should be collaborative, and a clear explanation is part of responsible consent.

Start with the purpose

Ask, “What is this tool being used to evaluate?” The answer might involve caries, bone levels, periapical changes, or another image-based task. Knowing the purpose helps you avoid treating a general label such as “AI diagnosis” as if it described one universal capability.

Then ask, “Will the software make a diagnosis, or will it highlight findings for your review?” A responsible answer should make clear that the dentist remains responsible for interpreting the result and making the clinical recommendation.

Ask how the result is checked

Useful questions include:

• How do you confirm an AI finding? The dentist should be able to explain how the alert is compared with examination findings, symptoms, history, image quality, and relevant tests.
• What would make you disregard the alert? This reveals whether the practice treats the software as a prompt or as an instruction.
• Could this be monitored instead of treated immediately? Not every radiographic signal calls for an invasive procedure.
• What are the alternatives? You should understand observation, additional evaluation, preventive care, and treatment where each is clinically appropriate.

Ask about evidence and data

You can also ask which software is used, what published evidence supports it, whether it has been externally validated, and how your images are stored or shared. The practice should explain these points in ordinary language, without using a confidence score to pressure you into a decision.

A good consent conversation leaves room for “not yet,” “let's investigate,” and “I'd like to understand the alternatives.”

Privacy, Ethics, and Who Owns Your Diagnosis

A dental image is part of your health information. Before an image is sent to an AI system, ask where it is processed, how it is stored, who can access it, and whether it is used for purposes beyond your care. The practice should be able to explain its data-handling process clearly enough for you to make an informed choice.

The ethical boundary is equally important. A software alert is not a confirmed diagnosis, and a confirmed diagnosis isn't automatically a treatment decision. Your dentist still needs to consider examination findings, symptoms, medical history, radiographic quality, disease risk, preferences, and the consequences of acting or waiting.

False positives and false negatives create different problems. A false positive can cause anxiety, extra testing, or unnecessary treatment. A false negative can create false reassurance and delay care. Because neither outcome is eliminated by a promising benchmark, human review remains essential.

Responsibility should therefore stay visible. The software can assist with image analysis, but the clinician who evaluates you must explain what the finding means, how certain it is, and why a recommendation fits your circumstances. Informed consent includes knowing when AI was used and understanding that you're consenting to care based on professional interpretation, not to an algorithm's unexplained output.

A thoughtful biologic, mercury-free practice can use digital tools without surrendering clinical judgment. The strongest workflow combines precise imaging, conservative reasoning, biocompatible treatment planning, and a conversation in which you remain an active participant.

---

At Loul Dental Studio, digital diagnostics are integrated with biologic, aesthetic, functional, and mercury-free dental care, including paperless workflows and conservative treatment planning. Visit the studio to discuss how AI-assisted image review, thorough clinical examination, and your personal health goals can work together in a clear, patient-centered plan.
